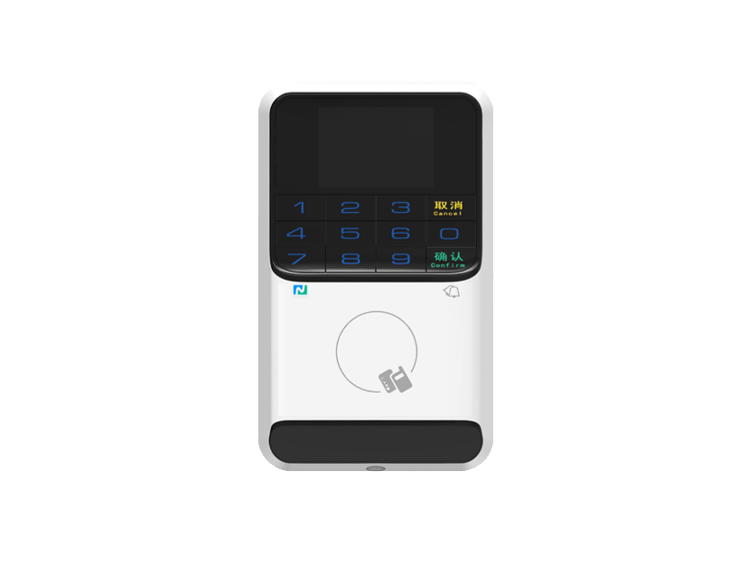

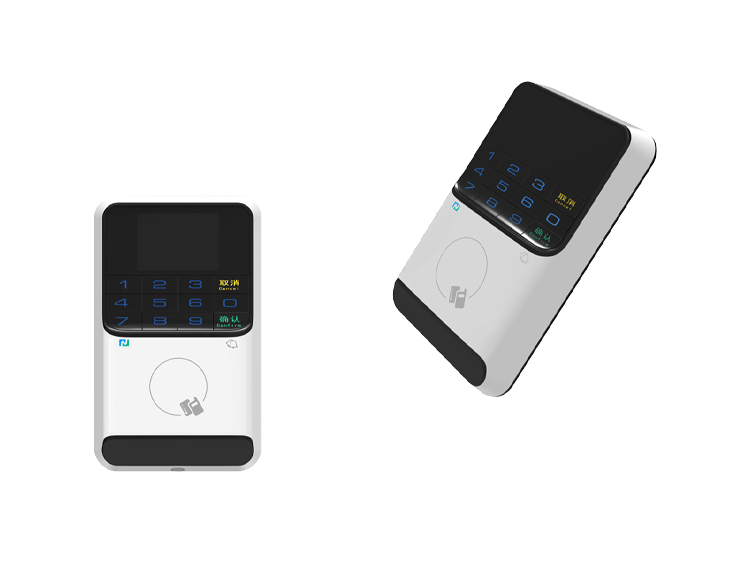

F9-C21 Access Control Card Reader features a minimalist industrial design and comes equipped with a high-definition OLED display for clear and intuitive status indication through sound and light prompts. Supporting 13.56MHz card recognition and compatible with the Wiegand protocol, the device can seamlessly integrate with various access control controllers. Easy to install and highly reliable, it is ideal for offices, industrial parks, campuses, residential communities, and other environments requiring efficient identity verification and secure access management.
Card-based access verification for entrances and exits
Personnel access authentication for office areas
Card-based access control for high-security areas
Access permission verification for floor passageways
Featuring a compact integrated housing made of flame-retardant ABS material, the device is durable, deformation-resistant, dustproof, moisture-resistant, and highly resistant to electromagnetic interference. Its modern industrial appearance easily blends into various interior styles. Supporting standard 86-box installation, it enables clean wiring and simple deployment, making it ideal for offices, campuses, and industrial parks.
Supporting ISO14443 standard 13.56MHz cards, the device provides sensitive and reliable card recognition with stable long-term operation. Compatible with both M1 cards and CPU cards, it delivers fast reading speed and low false-read rates, ensuring dependable performance in high-frequency access scenarios.
Equipped with a 128×64 OLED display, the device offers clear information visibility and a wide viewing angle. Combined with a breathing LED indicator and buzzer alerts, it provides intuitive status feedback for standby, successful card reading, and abnormal conditions, allowing easy operation and maintenance without specialized training.
The device supports three selectable security levels: card number verification, card content verification, and card content + password verification, meeting different security requirements across various scenarios. With standard Wiegand 34 output, it is compatible with mainstream access control controllers, enabling convenient integration, accurate permission management, and reliable security control.
ARM Cortex-A7 Processor
2.8-inch IPS Display, Resolution 320 × 240
Wiegand
Card, Password
M1 Card, CPU Card, Mobile NFC
0–5 cm
1 × Buzzer
1 × PSAM Card Slot,1 × SD Card Slot
DC 9–15V
≤2W
-10°C ～ 50°C
0–90% RH (Non-condensing)
136 × 82 × 23 mm
