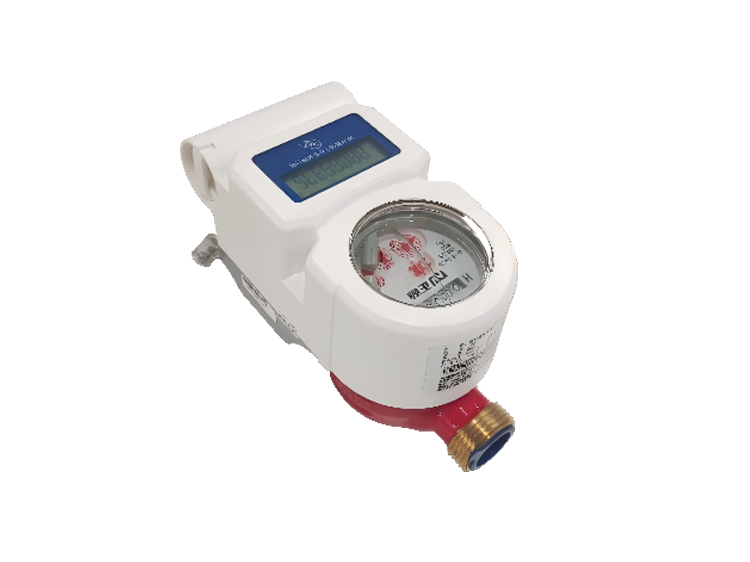

The prepaid cold/hot water meter integrates IoT and remote control technologies, combining precise measurement, electric valve control, remote communication, and intelligent prepaid management in a single water metering solution. It is widely applicable to communities, apartments, commercial buildings, and industrial parks, enabling a new model of efficient and convenient smart water management.
Centralized Installation
Decentralized Installation
Centralized Installation
Decentralized Installation
The device meets the IP68 waterproof and dustproof standard, ensuring long-term stable operation in harsh and humid conditions. The internal mainboard is fully encapsulated with flexible sealing silicone, paired with a dedicated waterproof junction box, independent sealed battery compartment, and specialized waterproof battery, providing comprehensive waterproof protection from inside out.
Equipped with a mature and reliable wet-type rotary vane metering mechanism, the flow sensor is highly sensitive and efficient. It undergoes strict precision calibration and factory verification, ensuring accurate and stable measurement over long-term operation. This guarantees precise trade settlement and reliable water usage metering across various scenarios.

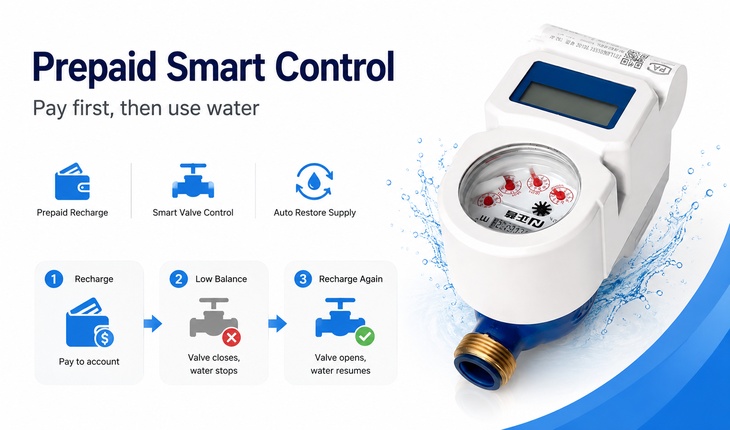

Built-in high-performance electric ball valve enables a smart prepaid water control mode. Users prepay for water, and water is supplied normally when the balance is sufficient; if the balance runs low, the valve automatically shuts off water supply. Once the balance is replenished, the valve reopens automatically. This ensures precise water usage control, eliminates manual billing and on-site valve operations, simplifies collection processes, and greatly improves water management efficiency.

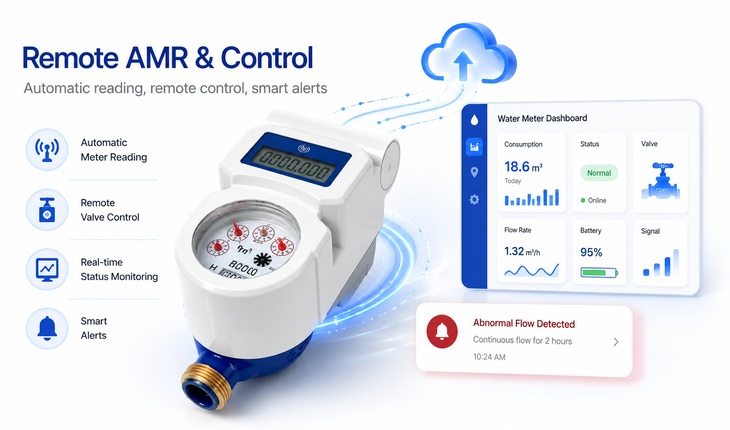

Supports multiple wired and wireless communication modes, allowing scheduled automatic collection and upload of water usage data, synchronized with real-time device status. Remote valve control enables precise water supply management anytime, anywhere. The device can automatically report core parameters, including remaining battery, valve status, operational conditions, and network signal strength. Intelligent anomaly detection triggers alerts immediately in case of abnormal flow or device faults, quickly identifying potential issues, reducing manual inspection, simplifying maintenance, and achieving centralized, intelligent, and highly efficient water meter operation management.

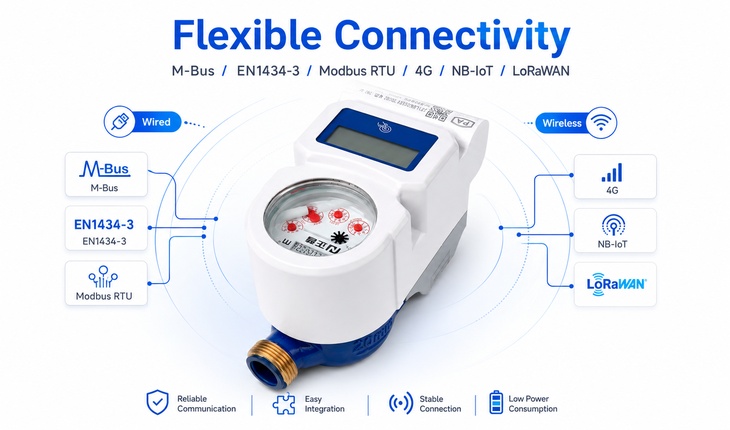

The device is compatible with mainstream industry-standard interfaces and universal communication protocols, equipped with an M-Bus standard interface and supporting dual protocols EN1434-3 and Modbus RTU for strong compatibility. It also supports 4G, NB-IoT, and LoRaWAN wireless communication, providing flexible wiring and easy networking, suitable for residential communities, industrial parks, and diverse installation environments, fully meeting the requirements of different projects for networking and data transmission.
Class 2
Class B
≤1 MPa
≤0.063 MPa
Cold Water Meter: 100; Hot Water Meter: 50
U10 / D5
Cold Water Meter: T30; Hot Water Meter: T90
3.6V Lithium Battery
M-Bus / 4G / NB-IoT / LoRaWAN
LCD
Touch Keys
Temperature: 5℃–55℃
<93% (at 40℃)
ISO 4064-1:2014, OIML R49-1:2013
