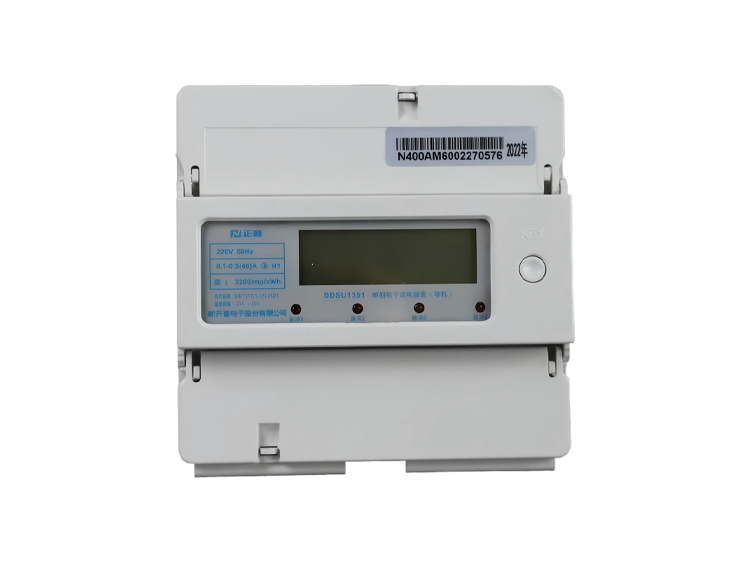

Din Rail Single-phase Electronic Energy Meter

4-Control 4-Metering Single-phase DIN Rail Electronic Energy Meter

Single-phase electronic DIN rail energy meter with 4 measuring channels, installed on standard 35mm DIN rail. It supports one meter for multiple households and one household with multiple meters modes. Featuring compact size and easy installation, it is ideal for schools, malls, apartments and office buildings for power safety, energy saving, intelligent management and refined electricity billing.

Meter Replaces 4pcs 60A Centralized Energy Meters 4-In 4-Out Arbitrary ABC Three-Phase Access Each Channel 60A Long-term Current Total 240A Multi-protection: Load Identification Overvoltage Overcurrent Over-temperature & Loss-of-Neutral Protection Multiple Control Modes: Single / Dual / Four Control Module SupportedPrepayment Function Supported
Send Email Get a quote
Din Rail Single-phase Electronic Energy Meter

Scenario Application

Apartments

Apartments

Centralized Installation

Communities

Communities

Decentralized Installation

School Campus

School Campus

Centralized Installation

Industrial Park

Industrial Park

Decentralized Installation

Feature

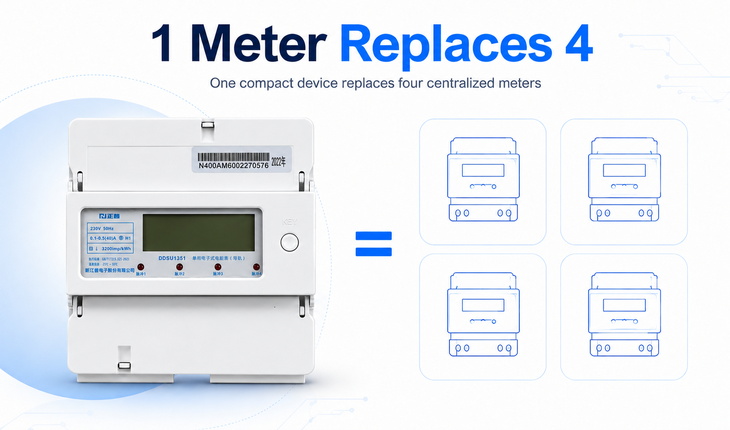

Meter Replaces 4 Meters, realizing integrated and compact installation

Meter Replaces 4 Meters, realizing integrated and compact installation

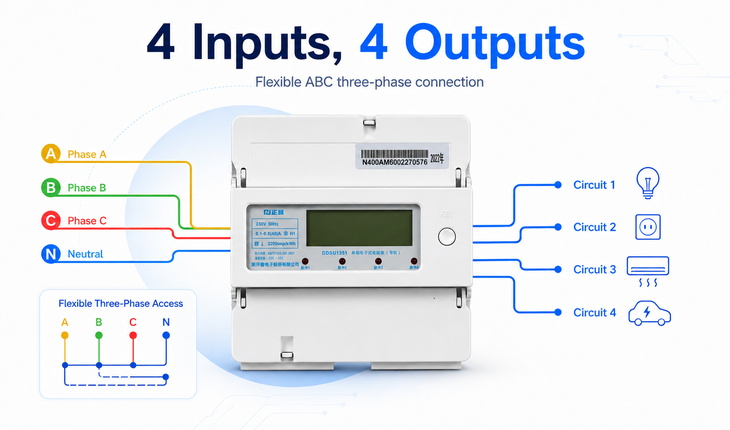

4-In 4-Out Design, supports arbitrary ABC three-phase access

4-In 4-Out Design, supports arbitrary ABC three-phase access

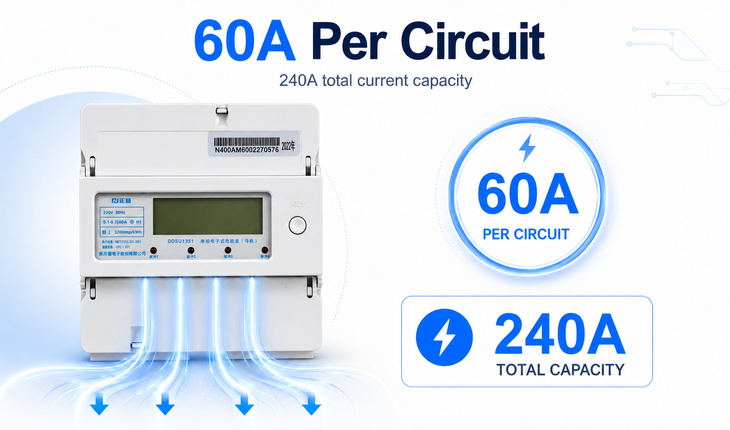

Single Circuit 60A, Total 240A continuous load current

Single Circuit 60A, Total 240A continuous load current

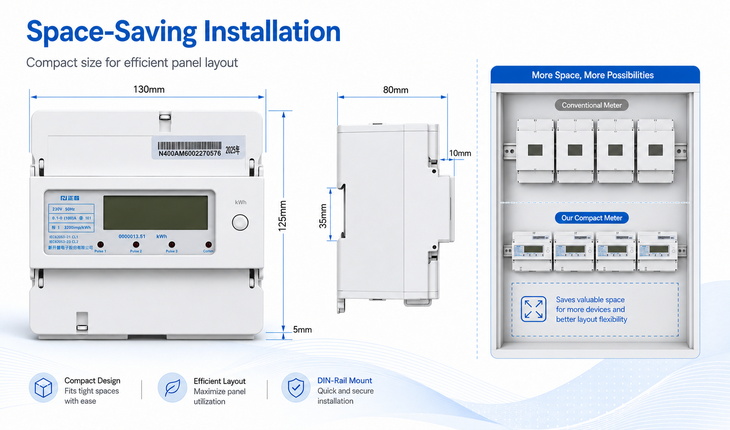

Save Space & Cut Costs

Save Space & Cut Costs

75% Space Saving on distribution box installation.,50% Cost Saving for wiring and equipment investment.

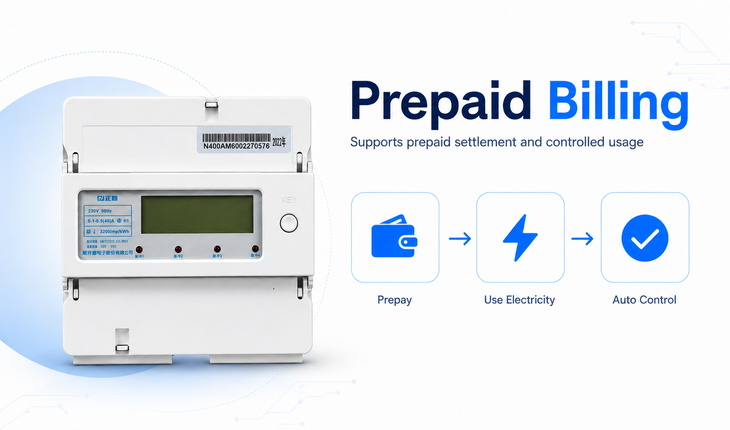

Prepayment Function Supported

Prepayment Function Supported

Parameter

Accuracy Class

Class B

Power Frequency

50Hz

Reference Voltage

220V

Operating Current

0.1-0.5(60)A

Connection Mode

Direct Connection

Pulse Constant

1600imp/kWh

Operating Ambient Temperature

-25℃ ~ 55℃

Standards Compliance

GB/T 17215.321-2021.

Product Dimensions

222×128×18.5 mm
