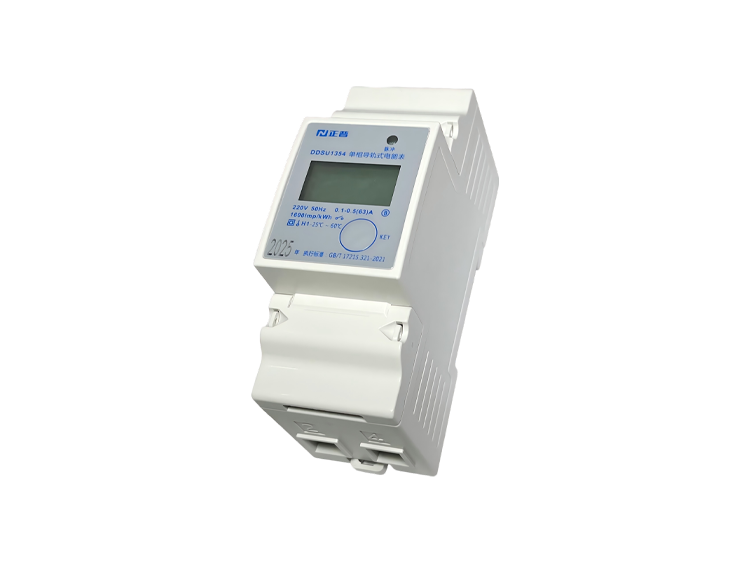

DIN Rail Single-phase Electronic Energy Meter

DIN Rail Single-phase Energy Meter Built-in 4G Wireless Communication Module

Single-phase DIN rail energy meter with 35mm standard rail installation, one meter per household design and built-in 4G wireless communication. Compact size, space-saving and easy to install. Suitable for schools, shopping malls, apartments, office buildings and industrial parks for power safety, energy saving and intelligent refined power management.

Single-Circuit Energy Metering Built-in 80A Relay for power energy management 63A Long-term Continuous Current 4G Wireless Communication support remote data upload and server data interaction Remote Switch Control Prepayment Function Supported
Send Email Get a quote
DIN Rail Single-phase Electronic Energy Meter

Scenario Application

Apartments

Apartments

Centralized Installation

Communities

Communities

Decentralized Installation

School Campus

School Campus

Centralized Installation

Industrial Park

Industrial Park

Decentralized Installation

Feature

Compact Size & Easy Installation

Compact Size & Easy Installation

4G Wireless Communication, Built-in Antenna

4G Wireless Communication, Built-in Antenna

Continuous 63A Current Capacity

Continuous 63A Current Capacity

Remote Switch Control

Remote Switch Control

Prepayment Function Supported

Prepayment Function Supported

Parameter

Accuracy Class

Class B

Power Frequency

50Hz

Reference Voltage

220V

Operating Current

0.1-0.5(60)A

Connection Mode

Direct Connection

Pulse Constant

1600imp/kWh

Operating Ambient Temperature

-25℃ ~ 55℃

Standards Compliance

GB/T 17215.321-2021.

Product Dimensions

100×68×37 mm
