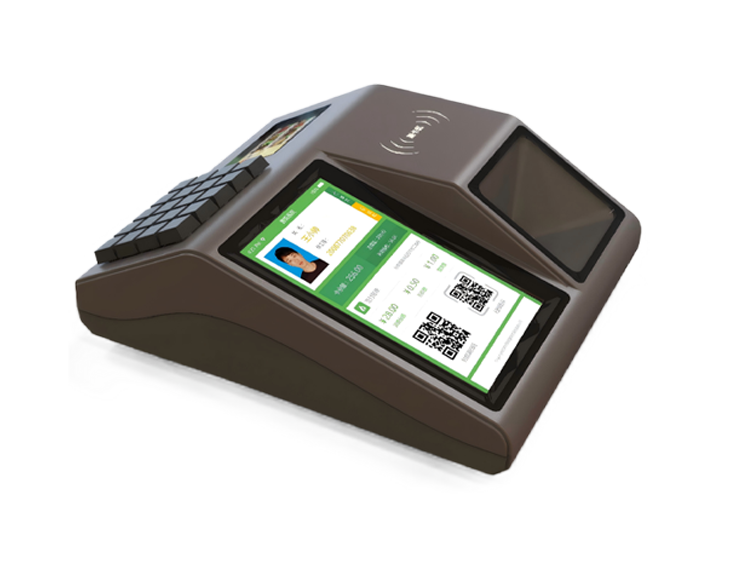

Integrates QR code scanning and full-network connectivity in one device. The desktop design is plug-and-play, making it suitable for all offline payment scenarios.

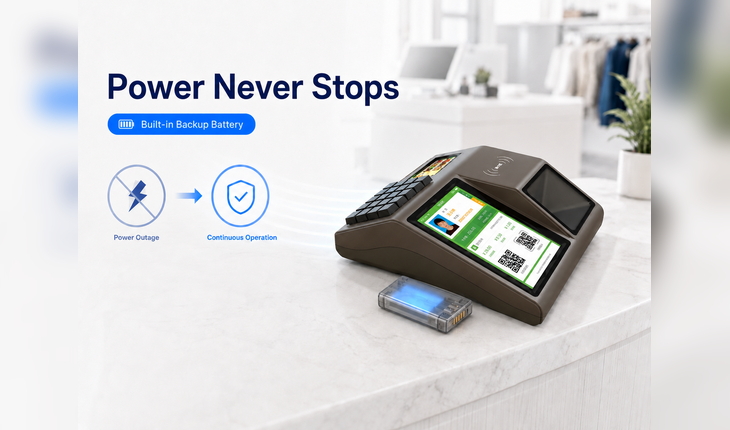

Built-in backup battery support effectively prevents device shutdown, data loss, and business interruption caused by unexpected power outages or instant power failures. The system automatically switches to seamless backup power the moment electricity is interrupted, ensuring continuous operation, stable network connectivity, and secure data retention without manual intervention. Daily business operations remain uninterrupted at all times.

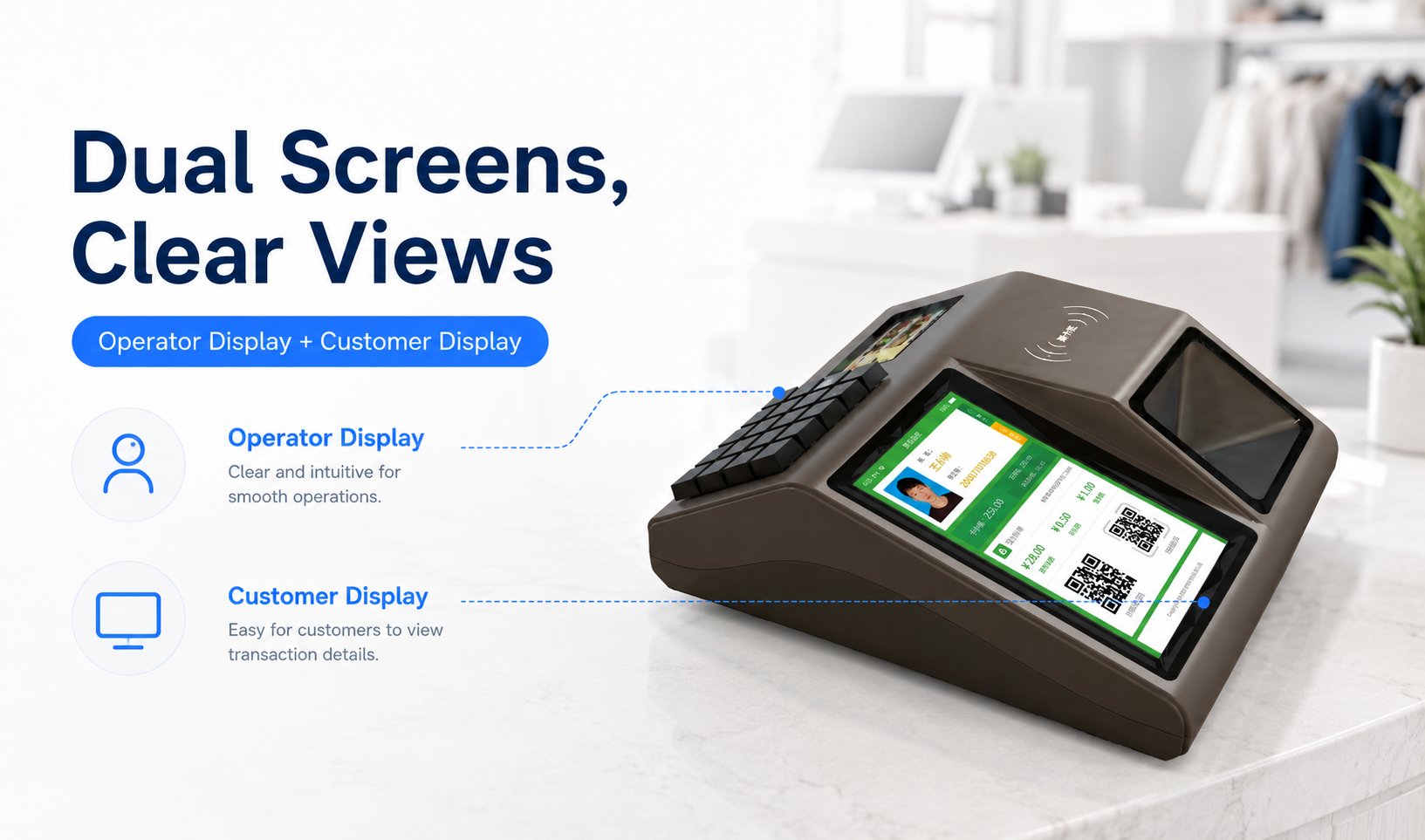

The dual-display architecture separates operator and customer interactions. The main screen faces the operator for backend management, data input, parameter configuration, and system operation, while the secondary customer-facing display independently shows payment amounts, QR codes, order details, and service prompts. This design eliminates confusion caused by single-screen operation, improves payment visibility, protects sensitive operational information, and enhances checkout clarity and customer experience.

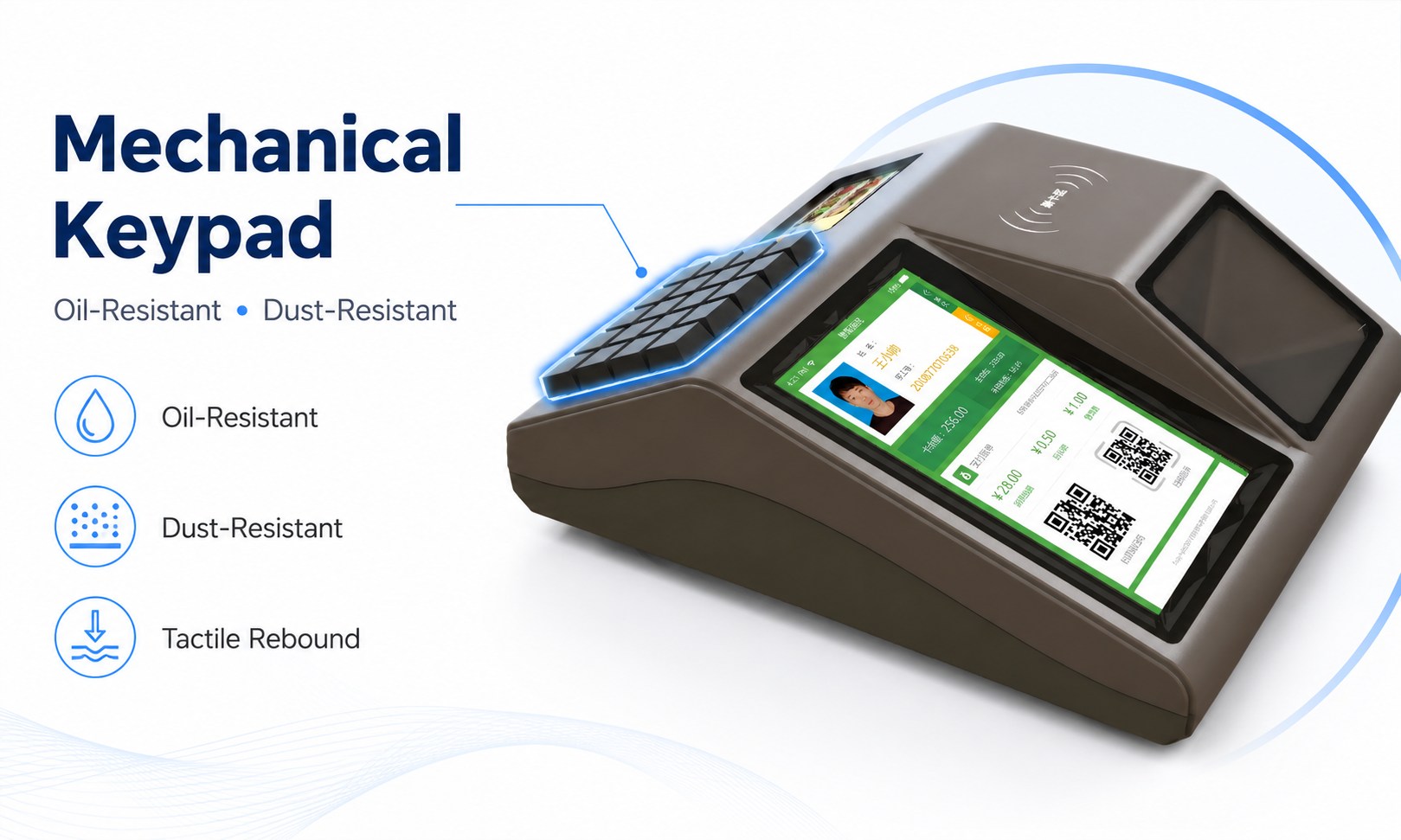

Designed for oil-resistant and dustproof durability, the mechanical keypad delivers responsive tactile feedback without sticking or lagging. The surface supports direct cleaning even in greasy environments, ensuring stable operation and reliable performance in demanding commercial scenarios.

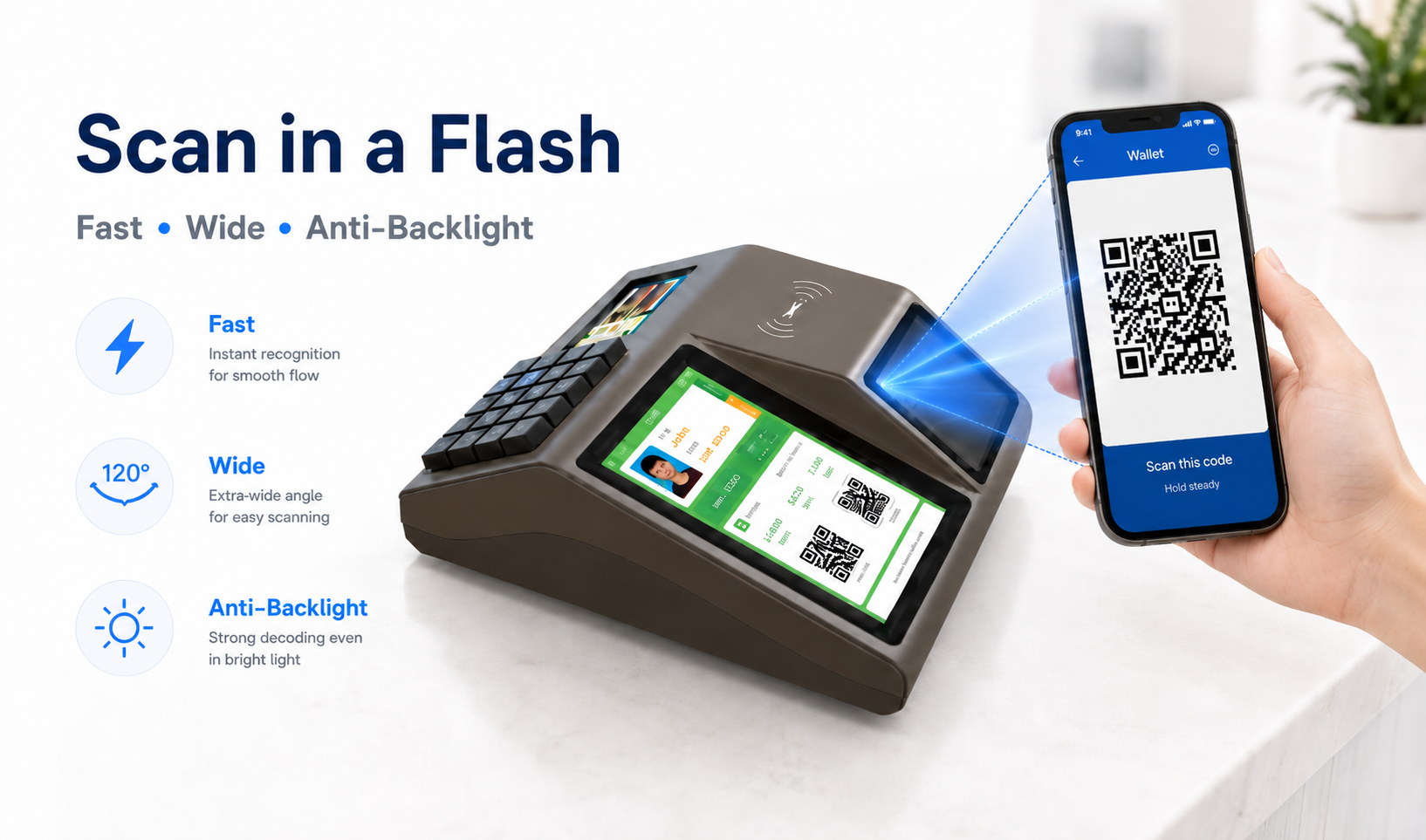

Features ultra-fast decoding, strong backlight resistance, and a wide-angle scanning module. QR codes can be recognized instantly without precise alignment or angle adjustment, even under strong or backlight conditions. This significantly improves checkout efficiency, prevents queues during peak hours, and adapts to outdoor, window-side, and other challenging lighting environments.

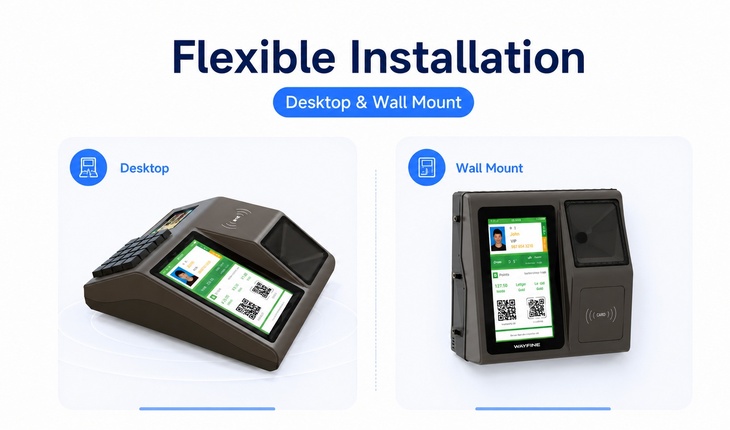

Supports both desktop and wall-mounted installation methods. Compatible with multiple dedicated mounting brackets, allowing flexible deployment across various commercial environments with convenient installation and excellent adaptability.
64-bit Quad-Core CPU Architecture, 1.4GHz or Above
Android 6.0
1GB RAM + 8GB Storage
Front Display: 7-inch Capacitive Multi-Touch Screen, Resolution ≥ 1024 × 600 Rear Display: 3.5-inch Screen, Resolution 480 × 320
Numeric / Alphabet Keys + Function Keys
PSAM*2、SIM*1
Supports Mifare 1 Cards and CPU Cards
Built-in Scanner, Recognition Speed ≤ 500ms
RJ45*1、RS232*1、USB 2.0 (OTG)*1、USB Device Interface*1
Ethernet, Optional WiFi & 4G Full Network Support
Real Human Voice Broadcast
AC220V or DC12V
5000mAh Lithium Battery
280 × 235 × 95 mm
Desktop Design
